Introduction

In the realm of software development, the Unified Modeling Language (UML) stands as a cornerstone methodology for creating robust, maintainable, and scalable systems. UML’s strength lies in its ability to provide a standardized, integrated set of diagram types that collectively describe different but interrelated views of the same software system. This integration enforces consistency across various aspects of the system, reducing contradictions and improving overall model quality. When combined with powerful tools like Visual Paradigm, UML becomes even more effective in ensuring software modeling excellence.

The Power of Multiple Views with Strong Dependencies

UML defines 14 diagram types that represent different perspectives of a system, including structural, behavioral, interaction, and deployment views. These diagrams are not independent; they strongly depend on each other to provide a coherent and complete system representation.

For example, consider an e-commerce platform:

1. Class Diagram (Structural): Shows the static structure of the system with classes like User, Product, Order, and their relationships.
2. State Machine Diagram (Behavioral): Describes how an Order object transitions through states like “Pending,” “Processing,” “Shipped,” and “Delivered.”
3. Sequence Diagram (Interaction): Illustrates the dynamic interactions between objects when a user places an order.

These diagrams must be consistent. If the class diagram shows an Order class with certain attributes, the state machine diagram must reflect those same attributes in its states and transitions.

Defined Consistency and Well-Formedness Rules

UML includes formal well-formedness rules and consistency constraints, often expressed in Object Constraint Language (OCL). These rules specify how model elements must relate and conform across diagrams, helping detect and prevent inconsistencies.

For instance, in Visual Paradigm, you can define constraints to ensure that:

• Every class in a class diagram has a corresponding entry in the deployment diagram.
• The attributes in a class diagram match the properties used in sequence diagrams.
• The states in a state machine diagram align with the operations defined in the class diagram.

Early Detection of Faults

Inconsistencies between UML diagrams can lead to faults in the final software system. By enforcing consistency, UML helps detect design errors early in the development lifecycle, reducing costly fixes later.

For example, if a sequence diagram shows a message being sent to a non-existent method in a class, Visual Paradigm can flag this inconsistency during the design phase, allowing developers to correct it before implementation.

Supporting Model-Driven Development

UML is the preferred language for Model-Driven Architecture (MDA), where models guide software development from requirements to deployment. Consistent UML models are critical for automated code generation and reverse engineering.

Visual Paradigm supports MDA by:

• Generating code from UML models, ensuring that the implemented code correctly reflects the design.
• Reverse engineering existing code into UML diagrams, helping maintain consistency between the code and the model.

Research and Tool Support for Consistency Management

Extensive research has identified and formalized numerous UML consistency rules, and various tools support automated consistency checking and model validation. Visual Paradigm is one such tool that provides comprehensive support for UML modeling and consistency management.

For example, Visual Paradigm offers:

• Syntax and Consistency Checks: Automatically checks models for compliance with UML standards and user-defined rules.
• Code Engineering: Generates code from models and synchronizes changes between models and code.
• Collaboration Features: Allows teams to work together on models, ensuring consistency across the board.

Practical Examples Using Visual Paradigm

Example 1: Class Diagram and State Machine Diagram Consistency

1. Class Diagram: Define a User class with attributes like username, password, and status.
2. State Machine Diagram: Create a state machine for the User class with states like “Active,” “Inactive,” and “Suspended.”
3. Consistency Check: Use Visual Paradigm to ensure that the status attribute in the class diagram matches the states in the state machine diagram.

Example 2: Sequence Diagram and Class Diagram Consistency

1. Class Diagram: Define an Order class with methods like placeOrder(), cancelOrder(), and updateOrder().
2. Sequence Diagram: Create a sequence diagram showing the interaction between a User and an Order object when placing an order.
3. Consistency Check: Use Visual Paradigm to verify that the messages in the sequence diagram correspond to the methods defined in the Order class.

Example 3: Deployment Diagram and Component Diagram Consistency

1. Component Diagram: Define components like UserInterface, OrderProcessing, and Database.
2. Deployment Diagram: Create a deployment diagram showing how these components are deployed across different nodes.
3. Consistency Check: Use Visual Paradigm to ensure that the components in the component diagram are correctly mapped to the nodes in the deployment diagram.

Summary Table

Case Study: UML Modeling with Visual Paradigm and PlantUML

Introduction

This case study explores the use of Unified Modeling Language (UML) for software modeling using Visual Paradigm and PlantUML. We will delve into a real-world scenario where UML modeling significantly improved the development process of a complex software system. The study will cover the challenges faced, the solutions implemented, and the outcomes achieved.

Background

Company Overview

TechSolutions Inc. is a mid-sized software development company specializing in enterprise solutions. The company was tasked with developing a comprehensive Customer Relationship Management (CRM) system for a large retail chain. The CRM system needed to integrate various functionalities such as customer management, sales tracking, inventory management, and reporting.

Project Challenges

1. Complexity: The CRM system required multiple interdependent modules, making it complex to design and implement.
2. Consistency: Ensuring consistency across different views of the system was challenging.
3. Collaboration: The development team was distributed across different locations, necessitating effective collaboration tools.
4. Early Fault Detection: Detecting design errors early in the development lifecycle was crucial to avoid costly fixes later.

Solution: UML Modeling with Visual Paradigm and PlantUML

Step 1: Requirements Gathering and Analysis

The first step involved gathering and analyzing the requirements for the CRM system. The team used UML use case diagrams to capture the functional requirements.

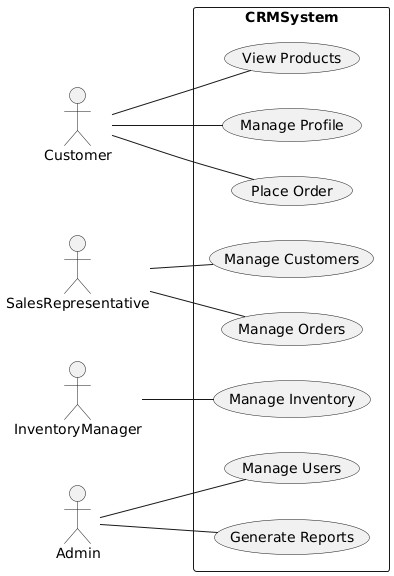

Use Case Diagram

Step 2: System Design

The team used Visual Paradigm to create various UML diagrams to represent different views of the system.

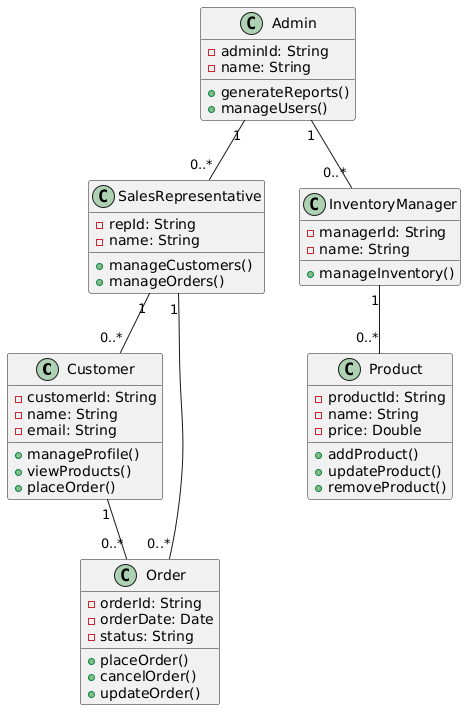

Class Diagram

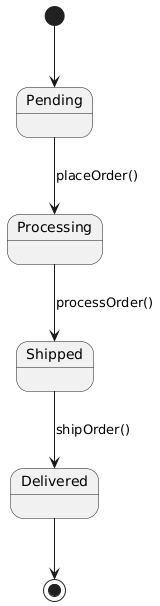

State Machine Diagram for Order

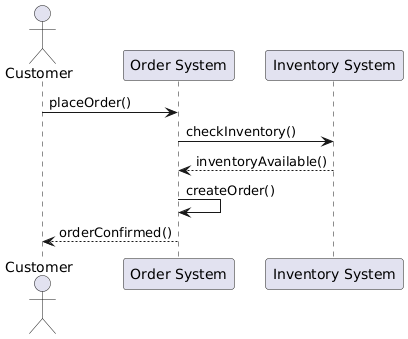

Sequence Diagram for Placing an Order

Step 3: Consistency Management

Visual Paradigm’s consistency checking features were used to ensure that the different UML diagrams were consistent with each other. For example:

• Ensuring that the Order class in the class diagram had corresponding states in the state machine diagram.
• Verifying that the messages in the sequence diagram matched the methods defined in the Order class.

Step 4: Model-Driven Development

The team used Visual Paradigm’s code generation capabilities to generate code from the UML models. This ensured that the implemented code correctly reflected the design.

Generated Code for Order Class

Step 5: Collaboration and Version Control

Visual Paradigm’s collaboration features allowed the distributed team to work together on the models. Version control was used to manage changes and ensure consistency across the board.

Outcomes

Improved Software Quality

By using UML modeling with Visual Paradigm, the team was able to detect design errors early in the development lifecycle. This significantly improved the quality of the software and reduced the number of faults in the final system.

Enhanced Collaboration

The use of Visual Paradigm’s collaboration features facilitated effective communication and coordination among the distributed team members. This ensured that everyone was on the same page and that the models remained consistent.

Efficient Development Process

The integration of UML modeling with code generation streamlined the development process. The team was able to generate code directly from the models, reducing the time and effort required for implementation.

Successful Deployment

The CRM system was successfully deployed and met all the requirements specified by the retail chain. The system’s robust design and high quality were attributed to the effective use of UML modeling with Visual Paradigm.

This case study demonstrates the significant benefits of using UML modeling with Visual Paradigm for complex software development projects. By leveraging multiple interdependent views, formal consistency rules, early fault detection, support for model-driven development, and a rich ecosystem of tools and research, UML ensures that software models are coherent, valid, and reliable throughout the development lifecycle. The successful deployment of the CRM system for the retail chain is a testament to the effectiveness of this approach.

Conclusion

UML, when used with a powerful tool like Visual Paradigm, provides a robust framework for achieving software modeling excellence. By leveraging multiple interdependent views, formal consistency rules, early fault detection, support for model-driven development, and a rich ecosystem of tools and research, UML ensures that software models are coherent, valid, and reliable throughout the development lifecycle. This integration of UML and Visual Paradigm not only enhances the quality of software systems but also streamlines the development process, making it more efficient and effective.
