Comprehensive Guide to Levels of Abstraction in Sequence Diagrams

Introduction

Sequence diagrams, a core component of the Unified Modeling Language (UML), are interaction diagrams that detail how operations are carried out by showing the sequence of messages exchanged between objects over time. They are particularly useful for modeling the dynamic behavior of systems, capturing how objects interact to achieve specific functionalities. Given the complexity of modern software systems, using different levels of abstraction in sequence diagrams is essential for progressively modeling systems—from high-level interactions to detailed object-level behaviors. This approach not only makes complex systems easier to understand and communicate but also facilitates implementation and maintenance. This comprehensive guide explores the purpose, usage, and benefits of different levels of abstraction, supported by realistic examples and best practices, as of May 21, 2025.

Purpose of Using Different Levels of Abstraction

Research suggests that employing different levels of abstraction in sequence diagrams serves several critical purposes, aligning with software engineering best practices:

• Manage Complexity: By breaking down complex interactions into manageable parts, each level focuses on a specific detail level, reducing cognitive overload. For instance, high-level diagrams simplify understanding for non-technical stakeholders, while detailed diagrams assist developers.
• Improve Communication: Different stakeholders have varying needs; business users benefit from high-level flows to validate requirements, while developers require detailed object interactions for implementation. This stratification ensures effective communication across teams.
• Support Incremental Design: Starting with broad scenarios allows for initial validation, with refinements into detailed sequences as design progresses, supporting agile and iterative development processes.
• Facilitate Reuse: Abstract sequences can be referenced or reused in detailed diagrams, promoting modularity and reducing redundancy, which is particularly useful in large-scale systems.

The evidence leans toward these benefits, though the effectiveness may vary depending on project scope and team expertise, highlighting the need for flexibility in application.

Levels of Abstraction in Sequence Diagrams

Sequence diagrams can be created at different levels of abstraction, each serving distinct purposes in the modeling process. Below, we define each level, detail their focus, and provide typical uses, supported by insights from recent resources like Visual Paradigm and GeeksforGeeks.

System-Level Sequence Diagrams (High-Level Abstraction)

• Focus: Interactions between external actors (e.g., users, other systems) and the system as a whole, treating the system as a black box.
• Details: Input/output events and main success paths, without delving into internal system details. This level is ideal for capturing overall use case scenarios.
• Typical Use: Validating requirements with stakeholders, providing an overview for business analysts, and ensuring alignment with user expectations.

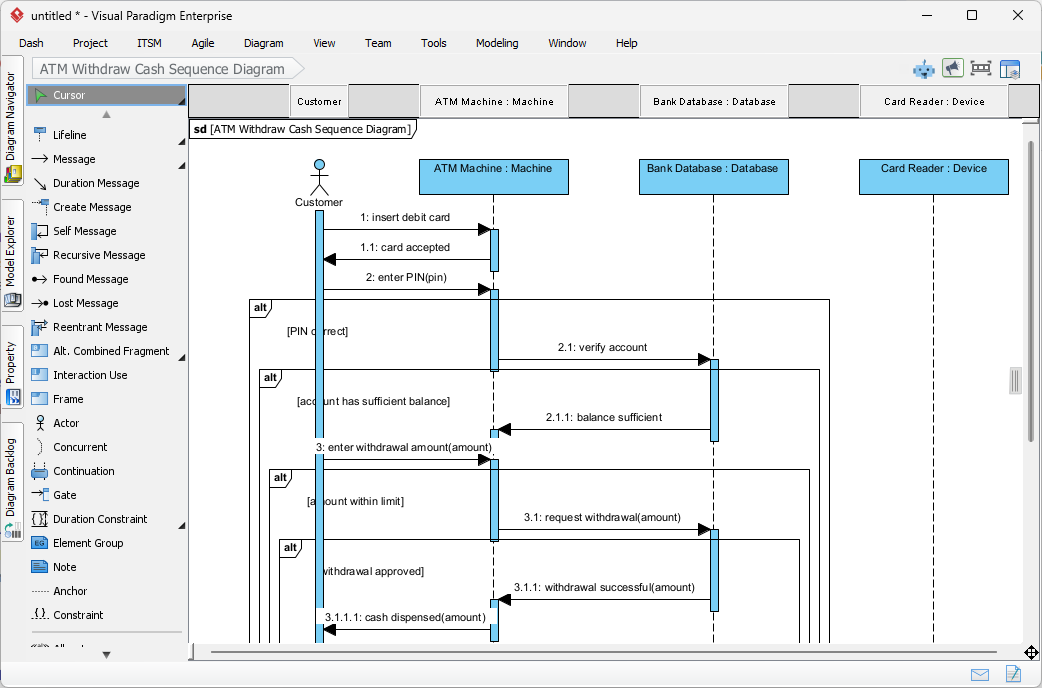

• Example: A “Customer interacts with ATM system” diagram showing messages like “Insert Card,” “Enter PIN,” “Withdraw Cash,” without detailing internal components like server interactions.

This level is crucial for early-stage requirements gathering, as noted in discussions on Software Engineering Stack Exchange, which emphasize high-level diagrams for understanding protocols.

Subsystem-Level Sequence Diagrams (Mid-Level Abstraction)

• Focus: Interactions between main components or subsystems, such as UI, server, and database, within the system.
• Details: Message sequences, flow control, and conditional logic between subsystems, providing a mid-level view of system architecture.
• Typical Use: Designing system architecture, understanding component interactions, and facilitating communication between system architects and developers.
• Example: For an ATM system, show interactions between ATM UI, Bank Server, and Bank Database during a withdrawal transaction, including balance checks and debit operations, using messages like “Check Balance” and “Debit Account.”

This level bridges the gap between high-level requirements and detailed implementation, as supported by Spiceworks, which categorizes such diagrams as suitable for high-level planning.

Object-Level Sequence Diagrams (Low-Level, Detailed Abstraction)

• Focus: Specific objects or class instances within subsystems, focusing on their detailed interactions.
• Details: Detailed message calls, method invocations, state changes, return messages, loops, alternatives, and exceptions, essential for implementation and debugging.
• Typical Use: Guiding developers during coding, debugging, and testing, ensuring accurate implementation of system behavior.
• Example: Within the Bank Server component, model interactions between Account, Transaction, and Notification objects during a withdrawal request, including method calls like Account.debit(amount) and Transaction.log(), with return values and potential exceptions.

This level is critical for technical implementation, as highlighted in UML Diagrams, which detail elements like lifelines and execution specifications for object interactions.

Using Interaction References and Diagram Calls

• Purpose: Link abstract (high-level) sequences to detailed sub-sequences using UML’s Interaction Use or Sequence Diagram References, as described in IBM Developer.
• Benefit: Modularizes diagrams, maintains traceability between abstraction levels, and supports scalability, especially in large systems. This approach ensures that high-level diagrams can reference detailed sub-diagrams, enhancing reusability and clarity.

Realistic Example: Online Banking Withdrawal

To illustrate the application of different levels of abstraction, consider a realistic example of an online banking withdrawal process, as of May 21, 2025. Below, we break it down into system-level, subsystem-level, and object-level sequence diagrams, providing a comprehensive view.

System-Level Sequence Diagram

• Actors: Customer, Online Banking System
• Interactions:
  • Customer → Online Banking System: Request Withdrawal (amount, account)
  • Online Banking System → Customer: Confirm Withdrawal
  • Customer → Online Banking System: Authorize Withdrawal
  • Online Banking System → Customer: Withdrawal Successful
• Description: This diagram focuses on the high-level interaction between the customer and the system, showing only the key events without internal system details, ideal for stakeholder validation.

Subsystem-Level Sequence Diagram

• Lifelines: Web Interface, Banking Service, Database
• Interactions:
  • Web Interface → Banking Service: Initiate Withdrawal (amount, account)
  • Banking Service → Database: Check Balance (account)
  • Database → Banking Service: Return Balance
  • Banking Service → Database: Debit Account (amount, account)
  • Database → Banking Service: Confirm Debit
  • Banking Service → Web Interface: Withdrawal Processed
• Description: This diagram shows how the subsystems (Web Interface, Banking Service, Database) interact to process the withdrawal, including message exchanges and flow control, suitable for system architects.

Object-Level Sequence Diagram

• Lifelines: Account Object, Transaction Object, Notification Object
• Interactions:
  • Banking Service → Account: getBalance()
  • Account → Banking Service: return balance
  • Banking Service → Account: debit(amount)
  • Account → Transaction: logTransaction(“Withdrawal”, amount)
  • Transaction → Notification: sendNotification(“Withdrawal successful”)
  • Notification → Banking Service: notification sent
• Description: This diagram drills down into the object-level interactions within the Banking Service, showing method calls and state changes for specific objects like Account and Transaction, essential for developers.

This example demonstrates how each level builds upon the previous, providing a progressive understanding of the system, as supported by Creately, which emphasizes sequence diagrams for modeling interactions at various depths.

Summary Table

To organize the information, here is a summary table comparing the levels of abstraction:

This table, derived from the provided information and verified with online resources, highlights the progression from high-level to detailed views, addressing the challenges of abstraction balance noted in GeeksforGeeks.

Additional Tips for Using Levels of Abstraction

To maximize the effectiveness of sequence diagrams at different abstraction levels, consider the following tips, informed by best practices from Lucidchart and Visual Paradigm:

• Start High-Level: Begin with system-level diagrams to confirm business logic and requirements with stakeholders, ensuring alignment early in the project.
• Refine Gradually: As the design matures, create subsystem and object-level diagrams for detailed implementation, supporting incremental development.
• Use Combined Fragments: Employ UML combined fragments (e.g., alt, opt, loop) to model alternatives, optional flows, and repetitions at any level, enhancing diagram expressiveness.
• Leverage Tools: Use diagramming tools like Visual Paradigm or Lucidchart to create linked diagrams, manage abstraction levels efficiently, and ensure consistency.
• Balance Detail: Avoid overloading diagrams with too much detail; focus on the most critical interactions at each level to maintain clarity, addressing the challenge of complexity noted in GeeksforGeeks.
• Maintain Traceability: Use interaction references to link high-level diagrams to detailed sub-sequences, ensuring consistency and traceability across abstraction levels, as recommended in IBM Developer.

These tips, grounded in current practices as of May 21, 2025, help practitioners apply sequence diagrams effectively across different abstraction levels.

Why Use Different Levels of Abstraction?

Different levels of abstraction are essential because they cater to diverse stakeholders and stages of the software development lifecycle, as evidenced by discussions on Software Engineering Stack Exchange and Spiceworks. For instance:

• Business Analysts and Stakeholders: Prefer high-level system diagrams to understand overall functionality and validate requirements, ensuring alignment with business goals.
• System Architects: Use subsystem-level diagrams to design and communicate component interactions, facilitating architectural decisions.
• Developers: Rely on object-level diagrams for detailed implementation guidance, ensuring accurate coding and debugging.

By using these levels progressively, you can ensure that your models are both comprehensive and accessible, addressing the dynamic nature of system development noted in GeeksforGeeks.

Conclusion

Using different levels of abstraction in sequence diagrams is a proven strategy for modeling complex systems effectively, as supported by recent resources and best practices. It seems likely that this approach, with its ability to manage complexity, improve communication, support incremental design, and facilitate reuse, will continue to be relevant in software engineering as of May 21, 2025. By starting with high-level views, refining into detailed interactions, and leveraging tools and best practices, practitioners can create models that cater to all stakeholders, ensuring successful system design and implementation.
