Introduction

Unified Modeling Language (UML) is a standardized visual modeling language designed to help system and software developers specify, visualize, construct, and document the artifacts of software systems, as well as model business and other non-software systems. This guide provides an in-depth look at UML, its origins, scope, diagrams, usage, benefits, and how it unifies different object-oriented design methodologies.

Overview of UML

Purpose

UML provides a common language and set of graphical notations to represent the design and architecture of complex software systems, facilitating communication among project teams and stakeholders.

Origins

UML was created by unifying three major object-oriented methodologies:

• Booch Method: Developed by Grady Booch, this method focuses on detailed object and class modeling.
• Object Modeling Technique (OMT): Developed by James Rumbaugh, OMT emphasizes system analysis and object modeling.
• Object-Oriented Software Engineering (OOSE): Developed by Ivar Jacobson, OOSE focuses on use case-driven requirements analysis.

UML was adopted as a standard by the Object Management Group (OMG) in 1997 and later became an ISO standard.

Scope

UML covers both structural and behavioral aspects of systems. It models system components, their relationships, and interactions, helping to visualize system architecture and design.

Diagrams

UML consists of an integrated set of diagram types that describe different system views:

• Structural Diagrams: Show system elements and their relationships.

  • Class Diagrams: Represent the static structure of a system, including classes, attributes, operations, and relationships.
  • Component Diagrams: Show the high-level components of a system and their dependencies.
  • Deployment Diagrams: Illustrate the physical deployment of software components on hardware.

• Behavioral Diagrams: Capture system behavior and interactions.

  • Use Case Diagrams: Represent the functional requirements of a system from the user’s perspective.
  • Sequence Diagrams: Show the interactions between objects in a sequential order.
  • Activity Diagrams: Represent the flow of control in a system, including decision points and parallel activities.

Usage

UML is widely used in object-oriented software development to represent system blueprints, explore design alternatives, validate architectures, and maintain documentation throughout the development lifecycle.

Benefits

• Standardized Language: Provides a standardized, visual language that improves understanding and communication.
• Multi-Level Modeling: Supports modeling at various abstraction levels, from high-level business processes to detailed software components.
• Iterative Development: Facilitates iterative and incremental development by enabling evolving models.
• Bridging Gap: Helps bridge the gap between business requirements and technical implementation.

How UML Unifies Different Object-Oriented Design Methodologies

Combining Strengths

UML takes the strengths of Booch’s detailed object and class modeling, Rumbaugh’s system analysis and object modeling approach, and Jacobson’s use case-driven requirements analysis to form a comprehensive modeling language that covers both structural and behavioral aspects of software systems.

Standardized Notation and Semantics

UML defines a standardized set of graphical notations and semantics that represent objects, classes, interactions, states, and behaviors in a unified way, making it easier for developers and architects to communicate and collaborate across different phases of software development.

Comprehensive Diagram Set

UML provides an integrated set of diagrams (such as class, sequence, use case, activity, and state diagrams) that collectively cover the wide range of modeling needs from requirements capture to system design and implementation, accommodating the different focuses of the original methodologies.

Industry Standardization

UML was adopted and maintained by the Object Management Group (OMG) as an industry standard, ensuring broad consensus and tool interoperability, further solidifying its role as the unified language for object-oriented modeling.

Facilitating Best Practices

By merging these methodologies, UML encapsulates best practices in object-oriented design and analysis, providing a consistent methodology that is easier to learn, apply, and extend than using the original methods separately.

Case Study: Implementing UML in a Software Development Project

Introduction

This case study explores the implementation of Unified Modeling Language (UML) in a software development project for a retail management system. The project aimed to develop a comprehensive system to manage inventory, sales, and customer relationships for a retail chain. UML was used extensively to model the system’s architecture, design, and behavior.

Background

The retail chain, with multiple stores across the country, faced challenges in managing inventory, tracking sales, and maintaining customer relationships. The existing system was outdated and lacked integration, leading to inefficiencies and data inconsistencies. The goal was to develop a modern, integrated retail management system that could streamline operations and improve decision-making.

Objectives

• Develop a unified system to manage inventory, sales, and customer relationships.
• Improve data accuracy and consistency.
• Enhance decision-making through real-time data analytics.
• Ensure scalability and flexibility to accommodate future growth.

Methodology

Requirements Gathering

The project team conducted extensive interviews with stakeholders, including store managers, sales associates, and IT staff, to gather requirements. Use case diagrams were created to capture the functional requirements of the system.

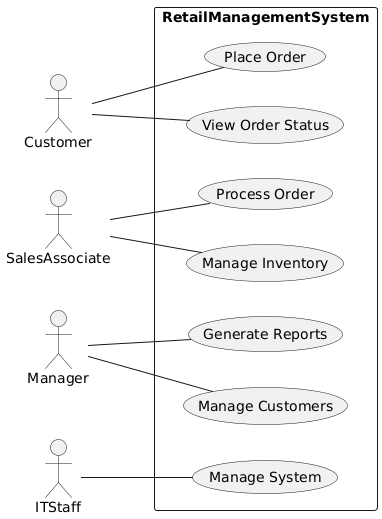

Use Case Diagram

System Design

The project team used UML to model the system’s architecture and design. Class diagrams were created to represent the static structure of the system, including classes, attributes, operations, and relationships.

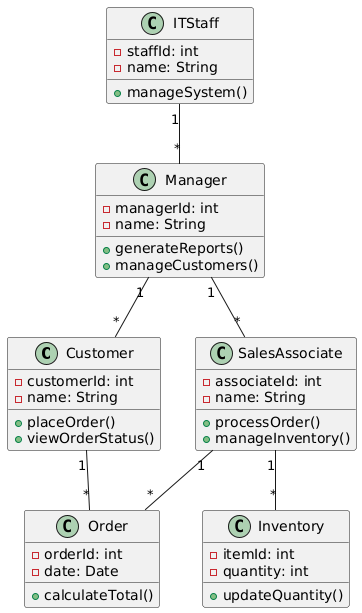

Class Diagram

Behavioral Modeling

Sequence diagrams were created to capture the interactions between objects in the system. These diagrams helped visualize the flow of control and data within the system.

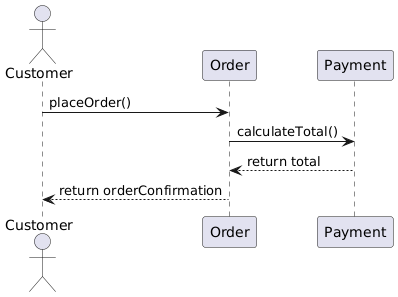

Sequence Diagram

Implementation

The project team used an iterative and incremental development approach, with UML models serving as the blueprint for implementation. The system was developed using Java and a relational database management system (RDBMS) for data storage.

Testing

The project team conducted extensive testing to ensure the system met the specified requirements and performed as expected. Test cases were derived from the UML models to validate the system’s functionality and behavior.

Deployment

The system was deployed in a phased manner, starting with a pilot implementation in a few stores. Feedback from the pilot implementation was used to make necessary adjustments before rolling out the system to all stores.

Results

• Improved Efficiency: The integrated system streamlined operations, reducing the time and effort required to manage inventory, sales, and customer relationships.
• Enhanced Data Accuracy: The system improved data accuracy and consistency, leading to better decision-making.
• Real-Time Analytics: The system provided real-time data analytics, enabling managers to make informed decisions.
• Scalability: The system was designed to be scalable and flexible, accommodating future growth and changes in business requirements.

Summary

UML is a comprehensive, standardized modeling language that serves as a blueprint for designing, visualizing, and documenting software systems and business processes, enhancing clarity, collaboration, and quality in system development. By unifying different object-oriented design methodologies, UML provides a consistent and powerful tool for software developers and architects.

The implementation of UML in the retail management system project was instrumental in achieving the project’s objectives. UML provided a standardized, visual language that improved understanding and communication among project teams and stakeholders. It supported modeling at various abstraction levels, from high-level business processes to detailed software components, facilitating iterative and incremental development.

By unifying different object-oriented design methodologies, UML provided a consistent and powerful tool for software developers and architects, enhancing clarity, collaboration, and quality in system development.

In essence, UML unifies different object-oriented design methodologies by combining their best elements into a standardized, semantically rich, and widely accepted modeling language that supports the entire software development lifecycle.
