Streamline Payroll Workflows: Generate Expert DFDs with AI Power in Visual Paradigm

Let’s be honest: staring at a blank canvas is a hobby for tortured artists, not for busy systems analysts trying to map out complex data movements. If you’ve ever lost an afternoon dragging squares and arrows just to show how an invoice moves from A to B, you know the struggle. Fortunately, the era of manual labor is fading. With the AI-powered diagram generation features in Visual Paradigm Desktop, you can now generate DFD with AI using nothing more than a few sentences of plain English. It’s like having a senior architect living inside your computer, minus the expensive coffee habit.

Quick Summary: Why Use AI for Data Flow Diagrams?

• Save hours of manual layout time by letting AI handle the initial structural heavy lifting.

• Ensure compliance and best practices with automatically applied standard notations.

• Bridge the gap between technical requirements and visual models in seconds.

• Foster rapid exploration by generating multiple scenarios without starting from scratch.

• No steep learning curve required—if you can describe it, you can model it.

Step 1: Summoning the AI Assistant

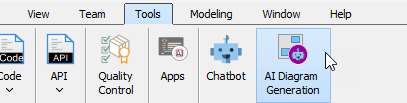

First things first, you need to tell Visual Paradigm that you’re ready to work smarter, not harder. Once you’ve fired up the desktop application and opened your project, skip the traditional shape library entirely. Instead, navigate your cursor toward the top ribbon. You are looking for the Tools menu, where the magic happens. Under this tab, you’ll find the AI Diagram Generation option, complete with a friendly robot icon that’s ready to do your bidding.

Selecting this tool opens a dedicated window that acts as your command center. It’s the gateway to transforming your high-level ideas into a professional DFD software output that actually makes sense. Instead of hunting for the correct Gane-Sarson or Yourdon symbols, you’re just one click away from a structured blueprint.

Step 2: Defining Your Data Logic

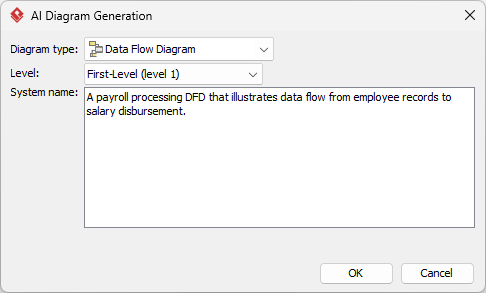

Now comes the part where you play director. In the AI Diagram Generation window, you’ll need to specify what you’re building. For our walkthrough, we’re tackling a classic: a payroll processing system. You’ll want to set the “Diagram type” to Data Flow Diagram and choose your desired depth. In this case, we’re going with a First-Level (Level 1) DFD to capture the core processes without getting bogged down in the atomic details of every single sub-routine.

The “System name” or description box is where your narrative takes flight. You don’t need to be a master of “prompt engineering” here. Simply describe the requirement in natural language. For instance, we typed: “A payroll processing DFD that illustrates data flow from employee records to salary disbursement.” The easy-to-use AI diagramming tool takes that single sentence and begins inferring the necessary processes, data stores, and external entities required to make that system functional.

Step 3: Refining the AI-Generated Masterpiece

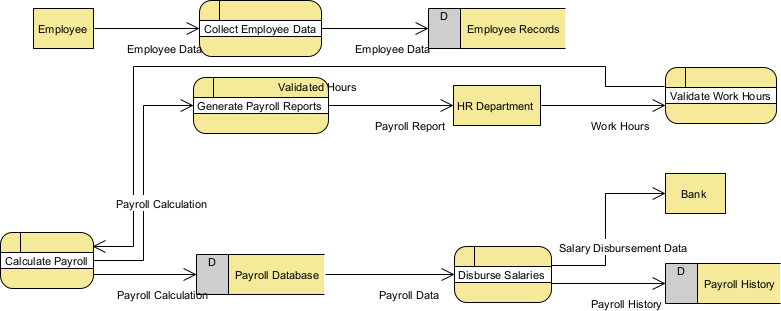

Once you hit “OK,” the AI doesn’t just draw lines; it thinks. It analyzes your text to identify that “Employee” is likely an external entity, “Employee Records” is a data store, and “Calculate Payroll” is a vital process. Within seconds, a fully editable, standards-compliant DFD appears on your screen. As you can see in the generated result, the AI intelligently connected the dots—flowing from the initial data collection to the final salary disbursement and bank notification.

The beauty of this best AI-powered editor is that it isn’t a static image. The generated model opens directly in the Visual Paradigm editor. If the AI was a bit too enthusiastic or if you realized you forgot to mention a specific HR audit step, you can simply click, drag, and refine. It provides a professional-grade foundation that you can then link to other models or use for official documentation and stakeholder reviews.

Conclusion: The Future of Modeling is Conversational

Gone are the days when creating a comprehensive system overview felt like a chore. By learning how to generate DFD with AI, you’re essentially giving yourself a massive productivity boost. You get to focus on the high-level logic while Visual Paradigm handles the tedious geometry of connectors and shapes. Whether you are documenting a legacy system or architecting a new payroll module, this innovative AI diagram maker ensures your documentation is accurate, clear, and produced in record time.

Ready to let the robots do the heavy lifting? You can experience the power of AI-driven design yourself. Head over to the download page and get started with Visual Paradigm today.

Try it now: Download Visual Paradigm Desktop
