Introduction
In the rapidly evolving landscape of software development and systems architecture, clarity is currency. For decades, professionals have relied on drag-and-drop interfaces to create diagrams, a process that is often time-consuming, difficult to version-control, and prone to inconsistency. As teams adopt DevOps practices and Infrastructure-as-Code (IaC) methodologies, the demand for “Diagram-as-Code” (DaC) has surged.
Enter VPasCode (Visual Paradigm as Code), a brand-new, unified platform designed to bridge the gap between textual precision and visual clarity. Whether you are a software engineer defining class structures, a system architect mapping cloud infrastructure, or a business analyst outlining workflows, VPasCode transforms text into beautiful, professional diagrams in seconds. By integrating the world’s most popular open-source diagramming engines into a single, seamless web-based environment, VPasCode eliminates context-switching and empowers teams to build, preview, and share complex visualizations with unprecedented efficiency.
What is VPasCode?
VPasCode is an integrated environment that combines a convenient, free code editor with a high-performance diagram renderer. It is built for those who love the speed, reproducibility, and version-control benefits of writing code but need the communicative power of visual diagrams.
Because it is a fully integrated environment, VPasCode theoretically supports all syntax rules for the world’s most popular diagramming engines. At launch, it completely supports:
-
PlantUML Editor & Renderer: Create robust enterprise and software architecture diagrams.
-
Mermaid.js Editor & Renderer: Render modern, markdown-inspired charts and timelines natively in your browser.
-
Graphviz Editor & Renderer: Leverage the power of DOT language for complex network and data structures.
This multi-engine support ensures that regardless of your preferred syntax or legacy documentation standards, VPasCode serves as a universal sandbox for your visual needs.
Supported Diagram Types At a Glance
VPasCode supports an incredibly vast library of diagram types. Here is a snapshot of what you can build right now:
PlantUML Integration
-
Sequence, Use Case, Class, and Object Diagrams
-
Activity, Component, Deployment, and State Diagrams
-
ArchiMate & C4 Models
-
Entity Relationship Diagrams (ERD) & Chen ERD
-
Network Diagrams, WBS (Work Breakdown Structure), and Timing Diagrams
Mermaid.js Integration
-
Flowcharts, Class, and Sequence Diagrams
-
Entity Relationship Diagrams (ERD) & State Diagrams
-
Mind maps, Timelines, and User Journey Maps
-
Gantt Charts, Git Graphs, and Kanban Boards
-
C4 Models, Quadrant Charts, and Requirement Diagrams
Graphviz Integration
-
Digraph & Graph
-
Flowcharts & Data Flow Diagrams
-
Organization Charts & Clusters
Features & Capabilities
We want VPasCode to be accessible to everyone, which is why we’ve packed our free tier with essential tools while offering groundbreaking AI-assisted features for premium users.
Free Features Available to Everyone:
-
Multi-Engine Support: Full access to PlantUML, Mermaid.js, and Graphviz.
-
Textual Descriptions: Create intricate diagrams purely through intuitive code.
-
Real-Time Preview: See your diagram update instantly on the side of your screen as you type.
-
Easy Sharing: Generate a unique URL to easily share your live diagram with teammates or clients.
-
Flexible Exports: Download your finished work as high-quality PNG images or scalable SVG vector graphics.
Supercharge Your Workflow with Paid Features:
-
AI Code Error Fixing: Stuck on a syntax error? Our built-in AI will analyze your PlantUML, Mermaid, or Graphviz code and fix errors automatically.
-
AI Translation: Seamlessly translate the text and labels within your diagrams into multiple languages with a single click, breaking down language barriers in global teams.
How to Access VPasCode Paid Features
If you are an existing Visual Paradigm user, you might already have access to our premium AI features! The paid features of VPasCode are included with:
-
Visual Paradigm Online Combo Edition (or higher).
-
Visual Paradigm Desktop Professional Edition (or higher) with an active maintenance contract.
Note for Desktop Users: Visual Paradigm Professional Edition (or higher) users with active maintenance are automatically granted full access to the web apps of VP Online Combo Edition—which means you get instant access to VPasCode’s premium AI tools at no extra cost!
PlantUML and Mermaid in VPasCode – Diagram Examples
PlantUML Use Case Diagram: Ecommerce System
This use case diagram illustrates the primary interactions within an e-commerce checkout system. A customer can view their cart and proceed to checkout, where authentication, coupon application, and credit card payment are integrated through external services such as an identity provider and a payment processor.
@startuml
left to right direction
actor "E-Commerce Customer" as customer
actor "Identity Provider" as authPool
actor "Payment Processor" as stripe
rectangle "Checkout System Boundary" {
usecase "Authenticate" as UC_Auth
usecase "View Cart" as UC_Cart
usecase "Checkout" as UC_Check
usecase "Apply Coupon" as UC_Promo
usecase "Pay via Credit Card" as UC_Pay
}
customer --> UC_Cart
customer --> UC_Check
UC_Check ..> UC_Auth : <>
UC_Check <.. UC_Promo : <>
UC_Check ..> UC_Pay : <>
UC_Auth --> authPool
UC_Pay --> stripe
@enduml
PlantUML Class Diagram: Library Management System
This class diagram models a library management system, showing the key entities involved in catalog management, member services, and lending operations. The design uses inheritance to represent different types of library materials (such as books, magazines, and DVDs), while associations between members, librarians, borrowing records, and fines illustrate how items are borrowed, returned, and managed throughout their lifecycle.
@startuml
class Library {
- name: String
- address: String
- phone: String
+ addMember(member: Member): void
+ removeMember(memberId: String): void
+ addItem(item: LibraryItem): void
+ removeItem(itemId: String): void
+ lendItem(memberId: String, itemId: String): boolean
+ returnItem(itemId: String): boolean
}
class LibraryItem {
# itemId: String
# title: String
# publisher: String
# publicationYear: int
# isAvailable: boolean
+ getDetails(): String
+ setAvailability(status: boolean): void
}
abstract class Book {
- isbn: String
- author: String
- pageCount: int
+ getAuthor(): String
}
class EBook {
- fileSizeMB: double
- format: String
- downloadUrl: String
+ download(): void
}
class PrintedBook {
- shelfLocation: String
- condition: String
+ getShelfLocation(): String
}
class Magazine {
- issueNumber: int
- volumeNumber: int
- coverDate: Date
}
class DVD {
- durationMinutes: int
- director: String
- language: String
- subtitlesAvailable: boolean
}
class Member {
- memberId: String
- name: String
- email: String
- phone: String
- membershipDate: Date
+ borrowItem(item: LibraryItem): boolean
+ returnItem(item: LibraryItem): boolean
+ getBorrowedItems(): List
}
class BorrowingRecord {
- recordId: String
- borrowDate: Date
- dueDate: Date
- returnDate: Date
- isOverdue(): boolean
- calculateFine(): double
}
class Fine {
- fineId: String
- amount: double
- issueDate: Date
- isPaid: boolean
+ payFine(): void
}
class Librarian {
- staffId: String
- department: String
+ processBorrowing(member: Member, item: LibraryItem): void
+ processReturn(item: LibraryItem): void
+ generateReport(): void
+ manageInventory(): void
}
' Inheritance relationships
LibraryItem <|-- Book
LibraryItem <|-- Magazine
LibraryItem <|-- DVD
Book <|-- EBook
Book <|-- PrintedBook
' Composition and Aggregation
Library "1" -- "many" Member : has >
Library "1" -- "many" LibraryItem : contains >
Library "1" -- "many" Librarian : employs >
Member "1" -- "many" BorrowingRecord : has >
BorrowingRecord "1" -- "1..*" LibraryItem : references >
BorrowingRecord "1" -- "0..*" Fine : generates >
' Association
Librarian --> BorrowingRecord : manages >
Member --> BorrowingRecord : creates >
note top of Library : Central system that manages\nmembers, items, and lending
note right of LibraryItem : Abstract base class\nfor all library materials
@enduml

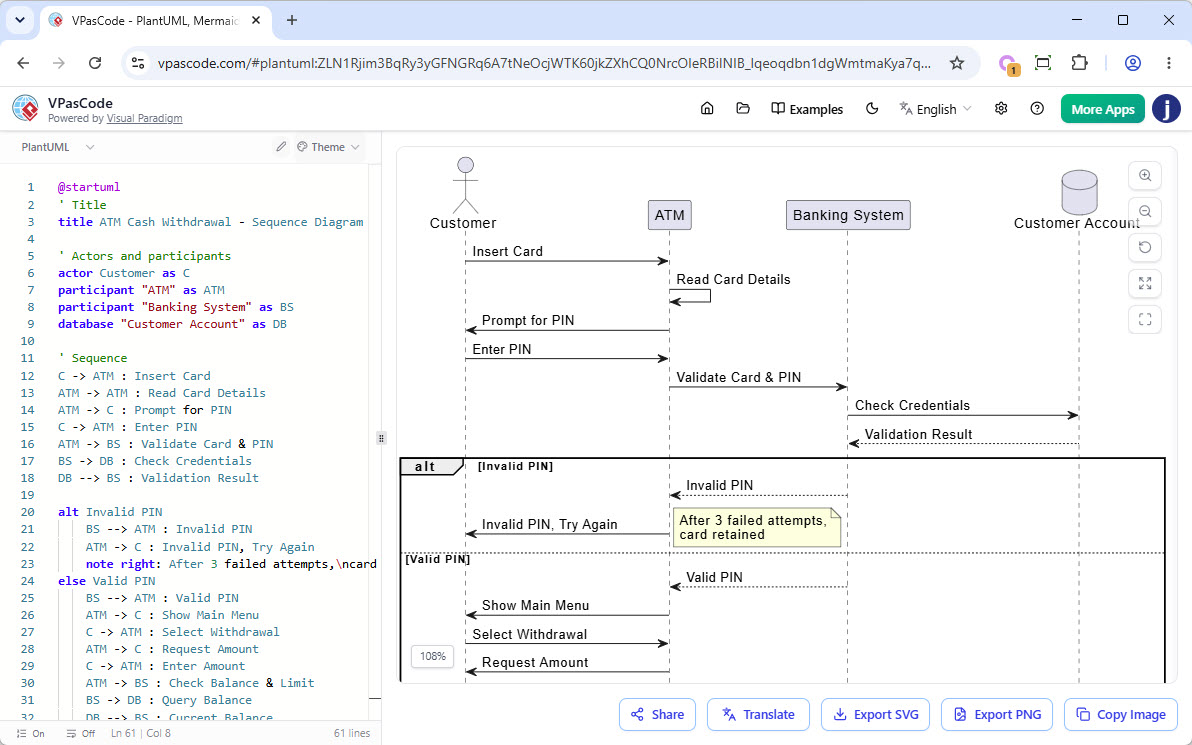

PlantUML Sequence Diagram: ATM Cash Withdraw
This sequence diagram illustrates the interactions involved in an ATM cash withdrawal transaction, from card insertion and PIN validation to cash dispensing and account updates. It highlights the communication between the customer, ATM, banking system, and customer account database, while also modeling alternative flows such as invalid PIN attempts, insufficient funds, and optional receipt printing.
@startuml
' Title
title ATM Cash Withdrawal - Sequence Diagram
' Actors and participants
actor Customer as C
participant "ATM" as ATM
participant "Banking System" as BS
database "Customer Account" as DB
' Sequence
C -> ATM : Insert Card
ATM -> ATM : Read Card Details
ATM -> C : Prompt for PIN
C -> ATM : Enter PIN
ATM -> BS : Validate Card & PIN
BS -> DB : Check Credentials
DB --> BS : Validation Result
alt Invalid PIN
BS --> ATM : Invalid PIN
ATM -> C : Invalid PIN, Try Again
note right: After 3 failed attempts,\ncard retained
else Valid PIN
BS --> ATM : Valid PIN
ATM -> C : Show Main Menu
C -> ATM : Select Withdrawal
ATM -> C : Request Amount
C -> ATM : Enter Amount
ATM -> BS : Check Balance & Limit
BS -> DB : Query Balance
DB --> BS : Current Balance
alt Insufficient Funds
BS --> ATM : Insufficient Balance
ATM -> C : Transaction Declined\n(Display Balance)
C -> ATM : Cancel Transaction
ATM -> C : Return Card
else Sufficient Funds
BS --> ATM : Approved
ATM -> ATM : Dispense Cash
ATM -> C : Dispense Cash
C -> ATM : Take Cash
ATM -> BS : Confirm Cash Dispensed
BS -> DB : Debit Account & Log Transaction
DB --> BS : Update Complete
BS --> ATM : Transaction Complete
ATM -> C : Print Receipt
alt Receipt Requested
C -> ATM : Take Receipt
else No Receipt
C -> ATM : Decline Receipt
end
ATM -> C : Return Card
C -> ATM : Take Card
end
end
ATM -> C : Thank You / Transaction End
@enduml

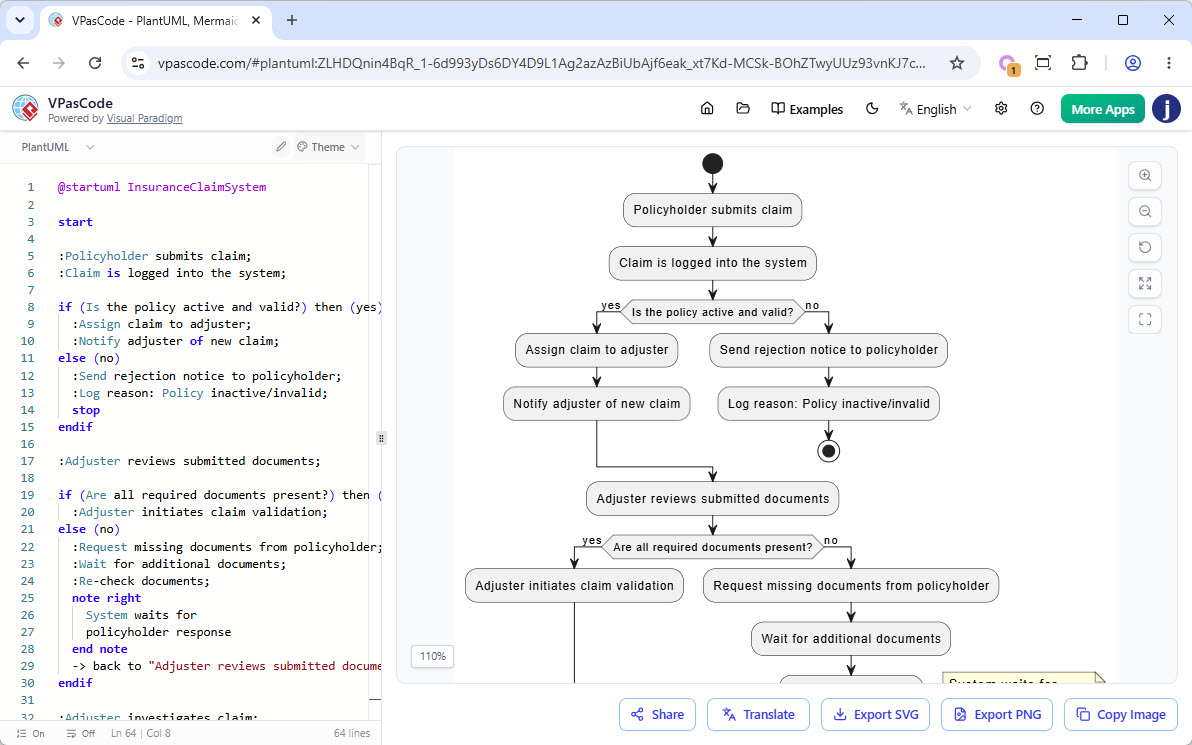

PlantUML Activity Diagram: Insurance Claim System
This activity diagram models the end-to-end workflow of an insurance claim processing system, from claim submission through validation, investigation, and settlement. It captures key decision points such as policy eligibility, document completeness, claim validity, and settlement acceptance, while illustrating both successful and exception-handling paths, including claim rejection and dispute resolution.
@startuml InsuranceClaimSystem
start
:Policyholder submits claim;
:Claim is logged into the system;
if (Is the policy active and valid?) then (yes)
:Assign claim to adjuster;
:Notify adjuster of new claim;
else (no)
:Send rejection notice to policyholder;
:Log reason: Policy inactive/invalid;
stop
endif
:Adjuster reviews submitted documents;
if (Are all required documents present?) then (yes)
:Adjuster initiates claim validation;
else (no)
:Request missing documents from policyholder;
:Wait for additional documents;
:Re-check documents;
note right
System waits for
policyholder response
end note
-> back to "Adjuster reviews submitted documents";
endif
:Adjuster investigates claim;
:Contact witnesses/experts if needed;
:Estimate damage/loss amount;
if (Is claim valid based on policy terms?) then (yes)
:Calculate approved amount;
:Apply deductible if applicable;
else (no)
:Send rejection notice with reason;
:Log decision in system;
stop
endif
:Generate settlement offer;
:Send settlement offer to policyholder;
:Policyholder reviews offer;
if (Does policyholder accept the offer?) then (yes)
:Process payment;
:Update claim status to "Settled";
:Send confirmation to policyholder;
:Log closure details;
else (no)
:Escalate to dispute resolution;
:Negotiate settlement;
:Update offer;
-> back to "Send settlement offer to policyholder";
endif
stop
@enduml

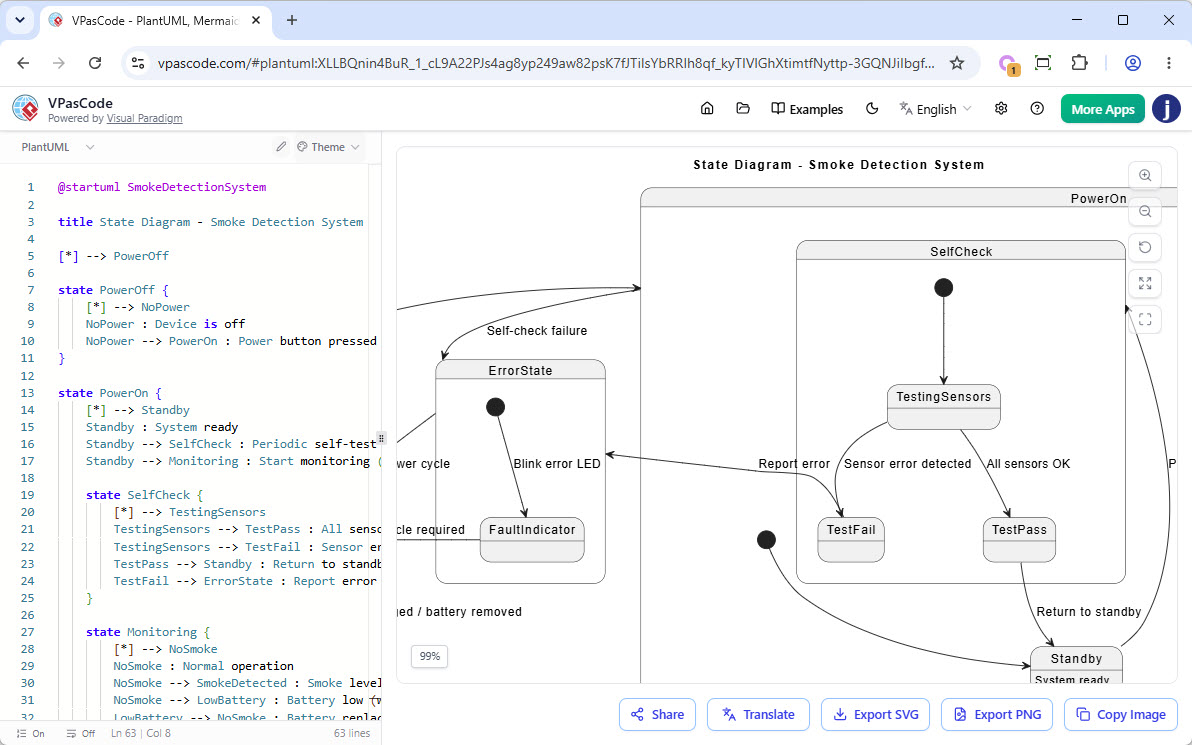

PlantUML State Diagram: Smoke Detection System
This state diagram illustrates the behavior of a smoke detection system as it transitions between operational states such as standby, monitoring, smoke detection, alarm activation, and error handling. It shows how the system responds to events including power changes, self-check results, smoke detection, low battery conditions, and user-initiated resets to ensure reliable fire monitoring and alerting.
@startuml SmokeDetectionSystem
title State Diagram - Smoke Detection System
[*] --> PowerOff
state PowerOff {
[*] --> NoPower
NoPower : Device is off
NoPower --> PowerOn : Power button pressed
}
state PowerOn {
[*] --> Standby
Standby : System ready
Standby --> SelfCheck : Periodic self-test (every 24h)
Standby --> Monitoring : Start monitoring (sensor active)
state SelfCheck {
[*] --> TestingSensors
TestingSensors --> TestPass : All sensors OK
TestingSensors --> TestFail : Sensor error detected
TestPass --> Standby : Return to standby
TestFail --> ErrorState : Report error
}
state Monitoring {
[*] --> NoSmoke
NoSmoke : Normal operation
NoSmoke --> SmokeDetected : Smoke level > threshold
NoSmoke --> LowBattery : Battery low (wireless)
LowBattery --> NoSmoke : Battery replaced
state SmokeDetected {
[*] --> InitialAlert
InitialAlert --> ConfirmedSmoke : Smoke persists > 5 sec
InitialAlert --> FalseAlarm : Smoke clears < 5 sec FalseAlarm --> NoSmoke : Reset
ConfirmedSmoke --> AlarmActive
}
state AlarmActive {
[*] --> SoundAlarm : Activate siren & lights
SoundAlarm --> SendNotification : Notify control panel / app
SendNotification --> WaitForReset
WaitForReset --> AlarmActive : Smoke still present
WaitForReset --> ResetSystem : Reset button pressed
ResetSystem --> NoSmoke : System resets
}
}
}
state ErrorState {
[*] --> FaultIndicator : Blink error LED
FaultIndicator --> PowerOff : Manual power cycle required
}
PowerOn --> ErrorState : Self-check failure
ErrorState --> PowerOff : Power cycle
PowerOff --> [*] : System unplugged / battery removed
@enduml
PlantUML Component Diagram: Courier System
This component diagram presents the high-level architecture of a courier management system, showing how client applications, backend services, messaging infrastructure, caches, and databases interact to support parcel delivery operations. It illustrates the separation of responsibilities across services such as order management, dispatching, tracking, payments, notifications, and user management, while highlighting both synchronous API communication and asynchronous event-driven processing.
@startuml CourierSystem
title Courier System - Component Diagram
' === Components ===
component "Customer App" as CustomerApp
component "Courier Mobile App" as CourierApp
component "Admin Web Dashboard" as AdminWeb
component "API Gateway" as ApiGateway
component "Order Service" as OrderService
component "Dispatch Service" as DispatchService
component "Tracking Service" as TrackingService
component "Payment Service" as PaymentService
component "Notification Service" as NotificationService
component "User Service" as UserService
component "Message Queue\n(RabbitMQ/Kafka)" as MessageQueue
component "Redis Cache" as RedisCache
database "PostgreSQL DB" as SQLDB
database "MongoDB\n(Logs/Tracking History)" as MongoLogs
' === Interfaces / Ports ===
CustomerApp --> ApiGateway : "REST / WebSocket"
CourierApp --> ApiGateway : "REST / WebSocket"
AdminWeb --> ApiGateway : "REST"
ApiGateway --> OrderService
ApiGateway --> TrackingService
ApiGateway --> PaymentService
ApiGateway --> UserService
' === Service Dependencies ===
OrderService --> DispatchService : "gRPC / REST"
OrderService --> PaymentService
OrderService --> NotificationService
OrderService --> SQLDB : "JDBC"
OrderService --> RedisCache : "Cache"
DispatchService --> MessageQueue : "Publish events"
DispatchService --> CourierApp : "Push via API Gateway"
DispatchService --> SQLDB
TrackingService --> MessageQueue : "Subscribe to location updates"
TrackingService --> MongoLogs : "Write tracking history"
TrackingService --> RedisCache : "Current location cache"
PaymentService --> SQLDB
PaymentService --> NotificationService
NotificationService --> MessageQueue : "Consume notifications"
NotificationService --> CustomerApp : "Push via API Gateway"
UserService --> SQLDB
UserService --> RedisCache
' === Notes ===
note right of OrderService
Handles parcel creation,
pricing, and order status
end note
note right of DispatchService
Matches orders with couriers,
optimizes routes
end note
note bottom of MessageQueue
Async events: order_created,
location_updated,
delivery_status_changed
end note
@enduml

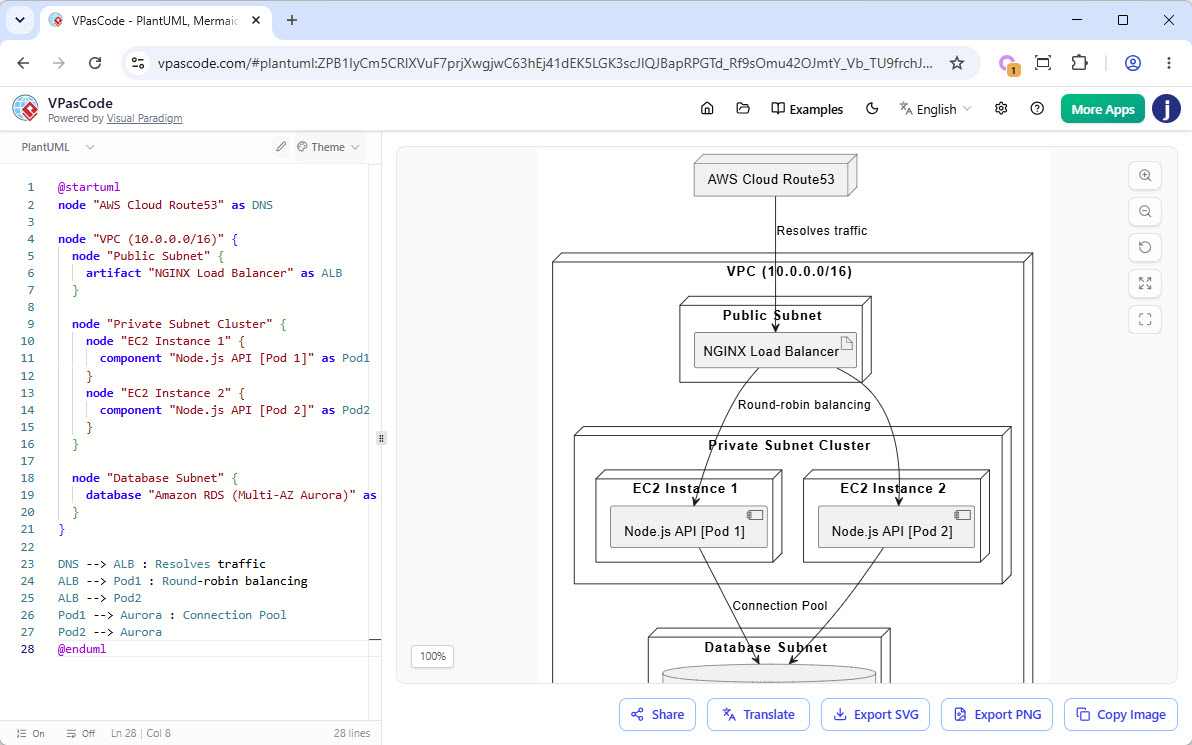

PlantUML Deployment Diagram: Sample Architecture
@startuml
node "AWS Cloud Route53" as DNS
node "VPC (10.0.0.0/16)" {
node "Public Subnet" {
artifact "NGINX Load Balancer" as ALB
}
node "Private Subnet Cluster" {
node "EC2 Instance 1" {
component "Node.js API [Pod 1]" as Pod1
}
node "EC2 Instance 2" {
component "Node.js API [Pod 2]" as Pod2
}
}
node "Database Subnet" {
database "Amazon RDS (Multi-AZ Aurora)" as Aurora
}
}
DNS --> ALB : Resolves traffic
ALB --> Pod1 : Round-robin balancing
ALB --> Pod2
Pod1 --> Aurora : Connection Pool
Pod2 --> Aurora
@enduml

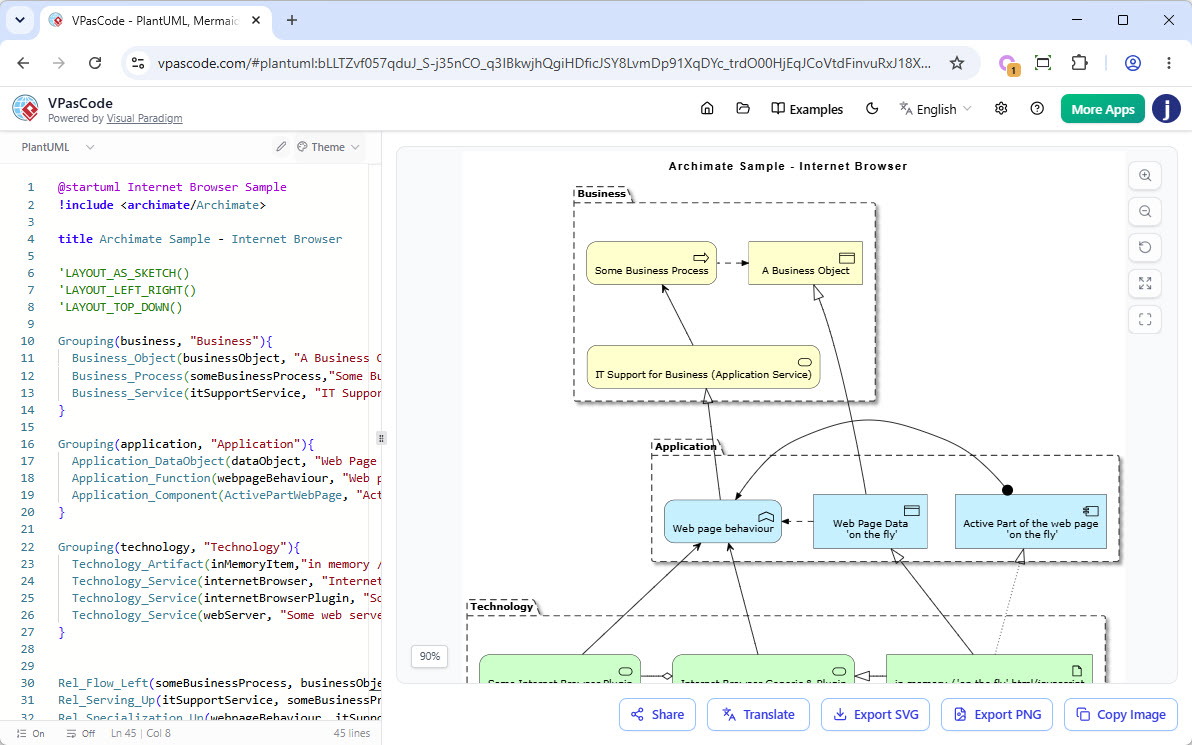

PlantUML ArchiMate Example: Internet Browser
This ArchiMate diagram illustrates how business, application, and technology layers interact to support web-based business functionality through an internet browser. It demonstrates the relationships between business processes, dynamically generated web page components and data, browser services and plugins, and the underlying web server infrastructure that delivers and supports the application experience.
@startuml Internet Browser Sample
!include <archimate/Archimate>
title Archimate Sample - Internet Browser
'LAYOUT_AS_SKETCH()
'LAYOUT_LEFT_RIGHT()
'LAYOUT_TOP_DOWN()
Grouping(business, "Business"){
Business_Object(businessObject, "A Business Object")
Business_Process(someBusinessProcess,"Some Business Process")
Business_Service(itSupportService, "IT Support for Business (Application Service)")
}
Grouping(application, "Application"){
Application_DataObject(dataObject, "Web Page Data \n 'on the fly'")
Application_Function(webpageBehaviour, "Web page behaviour")
Application_Component(ActivePartWebPage, "Active Part of the web page \n 'on the fly'")
}
Grouping(technology, "Technology"){
Technology_Artifact(inMemoryItem,"in memory / 'on the fly' html/javascript")
Technology_Service(internetBrowser, "Internet Browser Generic & Plugin")
Technology_Service(internetBrowserPlugin, "Some Internet Browser Plugin")
Technology_Service(webServer, "Some web server")
}
Rel_Flow_Left(someBusinessProcess, businessObject, "")
Rel_Serving_Up(itSupportService, someBusinessProcess, "")
Rel_Specialization_Up(webpageBehaviour, itSupportService, "")
Rel_Flow_Right(dataObject, webpageBehaviour, "")
Rel_Specialization_Up(dataObject, businessObject, "")
Rel_Assignment_Left(ActivePartWebPage, webpageBehaviour, "")
Rel_Specialization_Up(inMemoryItem, dataObject, "")
Rel_Realization_Up(inMemoryItem, ActivePartWebPage, "")
Rel_Specialization_Right(inMemoryItem,internetBrowser, "")
Rel_Serving_Up(internetBrowser, webpageBehaviour, "")
Rel_Serving_Up(internetBrowserPlugin, webpageBehaviour, "")
Rel_Aggregation_Right(internetBrowser, internetBrowserPlugin, "")
Rel_Access_Up(webServer, inMemoryItem, "")
Rel_Serving_Up(webServer, internetBrowser, "")
@enduml

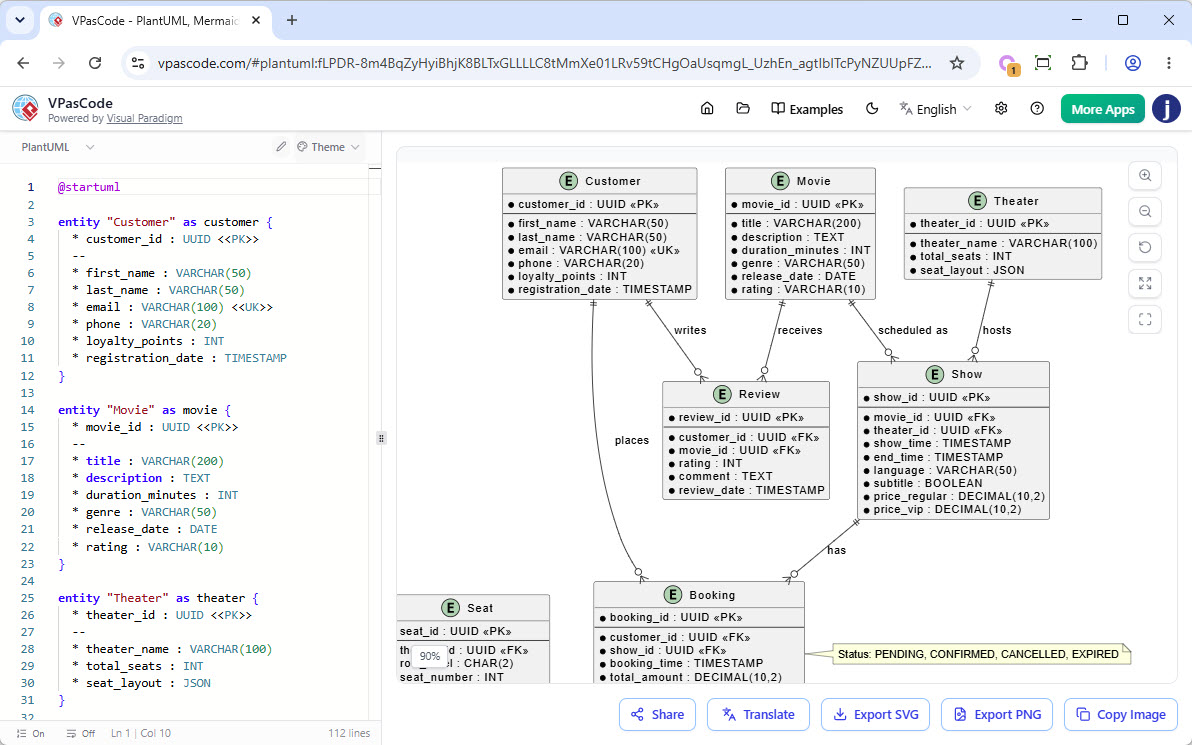

PlantUML ERD Example: Cinema Ticket System
@startuml
entity "Customer" as customer {
* customer_id : UUID <>
--
* first_name : VARCHAR(50)
* last_name : VARCHAR(50)
* email : VARCHAR(100) <>
* phone : VARCHAR(20)
* loyalty_points : INT
* registration_date : TIMESTAMP
}
entity "Movie" as movie {
* movie_id : UUID <>
--
* title : VARCHAR(200)
* description : TEXT
* duration_minutes : INT
* genre : VARCHAR(50)
* release_date : DATE
* rating : VARCHAR(10)
}
entity "Theater" as theater {
* theater_id : UUID <>
--
* theater_name : VARCHAR(100)
* total_seats : INT
* seat_layout : JSON
}
entity "Show" as show {
* show_id : UUID <>
--
* movie_id : UUID <>
* theater_id : UUID <>
* show_time : TIMESTAMP
* end_time : TIMESTAMP
* language : VARCHAR(50)
* subtitle : BOOLEAN
* price_regular : DECIMAL(10,2)
* price_vip : DECIMAL(10,2)
}
entity "Seat" as seat {
* seat_id : UUID <>
--
* theater_id : UUID <>
* row_label : CHAR(2)
* seat_number : INT
* seat_type : VARCHAR(20)
* is_accessible : BOOLEAN
}
entity "Booking" as booking {
* booking_id : UUID <>
--
* customer_id : UUID <>
* show_id : UUID <>
* booking_time : TIMESTAMP
* total_amount : DECIMAL(10,2)
* status : VARCHAR(20)
* payment_method : VARCHAR(30)
* transaction_id : VARCHAR(100)
}
entity "BookingSeat" as booking_seat {
* booking_id : UUID <<FK,PK>>
* seat_id : UUID <<FK,PK>>
--
* ticket_price : DECIMAL(10,2)
* discount_applied : DECIMAL(10,2)
}
entity "Payment" as payment {
* payment_id : UUID <>
--
* booking_id : UUID <>
* amount : DECIMAL(10,2)
* payment_date : TIMESTAMP
* payment_status : VARCHAR(20)
* payment_gateway : VARCHAR(30)
* gateway_reference : VARCHAR(200)
}
entity "Review" as review {
* review_id : UUID <>
--
* customer_id : UUID <>
* movie_id : UUID <>
* rating : INT
* comment : TEXT
* review_date : TIMESTAMP
}
' Relationships
customer ||--o{ booking : "places"
movie ||--o{ show : "scheduled as"
theater ||--o{ show : "hosts"
show ||--o{ booking : "has"
booking ||--|{ booking_seat : "contains"
seat ||--o{ booking_seat : "assigned to"
booking ||--|| payment : "has"
customer ||--o{ review : "writes"
movie ||--o{ review : "receives"
note right of booking : Status: PENDING, CONFIRMED, CANCELLED, EXPIRED
note left of seat : seat_type: REGULAR, VIP, COUPLES
note right of payment : payment_status: PENDING, SUCCESS, FAILED, REFUNDED
@enduml

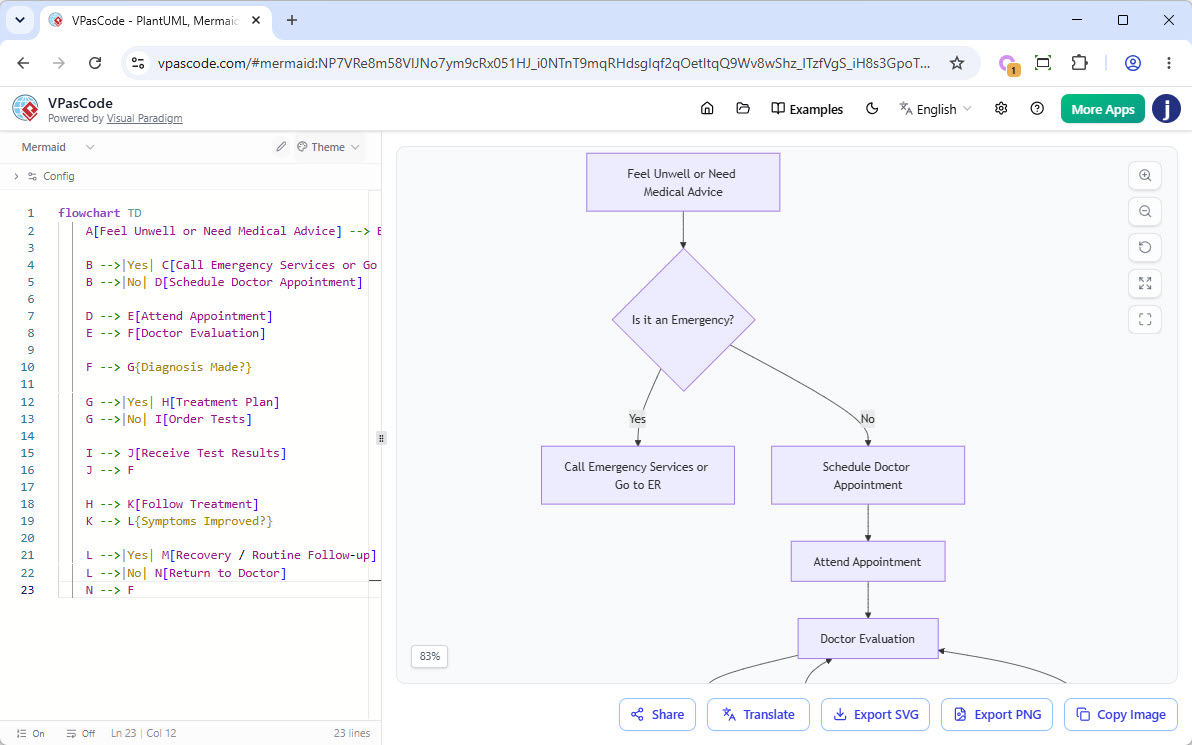

Mermaid Flowchart: See Doctor
This flowchart illustrates a typical healthcare decision-making process, guiding patients from the initial recognition of symptoms through diagnosis, testing, treatment, and recovery. It highlights key decision points, including emergency assessment, diagnostic evaluation, and treatment effectiveness, while showing how unresolved symptoms may require additional medical consultation and reassessment.
flowchart TD
A[Feel Unwell or Need Medical Advice] --> B{Is it an Emergency?}
B -->|Yes| C[Call Emergency Services or Go to ER]
B -->|No| D[Schedule Doctor Appointment]
D --> E[Attend Appointment]
E --> F[Doctor Evaluation]
F --> G{Diagnosis Made?}
G -->|Yes| H[Treatment Plan]
G -->|No| I[Order Tests]
I --> J[Receive Test Results]
J --> F
H --> K[Follow Treatment]
K --> L{Symptoms Improved?}
L -->|Yes| M[Recovery / Routine Follow-up]
L -->|No| N[Return to Doctor]
N --> F

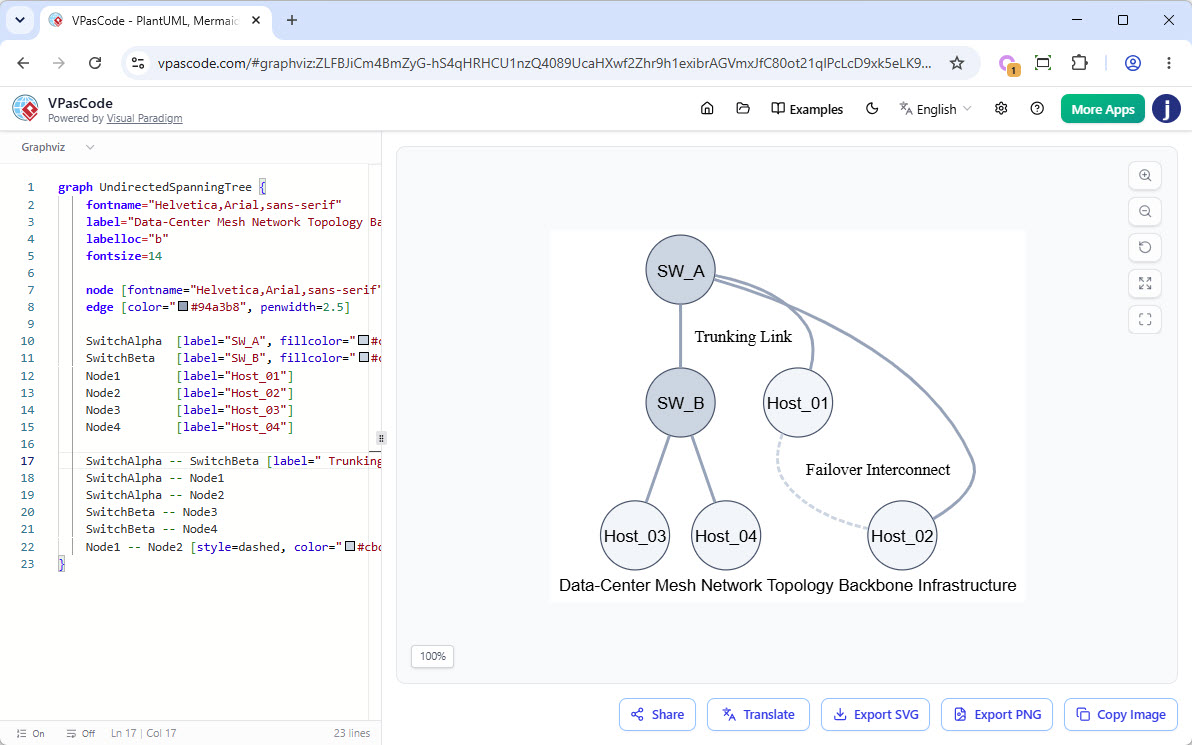

Graphviz Graph
This diagram represents a simplified data-center network topology, illustrating how hosts are connected through a backbone of interconnected switches. It highlights the primary communication paths between network devices, including a trunk link between switches and a secondary failover connection that provides redundancy and resilience in the event of network disruptions.
graph UndirectedSpanningTree {
fontname="Helvetica,Arial,sans-serif"
label="Data-Center Mesh Network Topology Backbone Infrastructure"
labelloc="b"
fontsize=14
node [fontname="Helvetica,Arial,sans-serif", shape=circle, style=filled, color="#475569", fillcolor="#f1f5f9", width=0.8, fixedsize=true]
edge [color="#94a3b8", penwidth=2.5]
SwitchAlpha [label="SW_A", fillcolor="#cbd5e1"]
SwitchBeta [label="SW_B", fillcolor="#cbd5e1"]
Node1 [label="Host_01"]
Node2 [label="Host_02"]
Node3 [label="Host_03"]
Node4 [label="Host_04"]
SwitchAlpha -- SwitchBeta [label=" Trunking Link", weight=5]
SwitchAlpha -- Node1
SwitchAlpha -- Node2
SwitchBeta -- Node3
SwitchBeta -- Node4
Node1 -- Node2 [style=dashed, color="#cbd5e1", label=" Failover Interconnect"]
}
Core Architecture & Multi-Engine Unity
VPasCode is not just another diagramming tool; it is a unified workspace that brings the world’s most popular diagramming syntaxes into one seamless cloud editor. Its true multi-engine support allows for native parsing and rendering of PlantUML, Mermaid.js, and Graphviz, ensuring compatibility with existing documentation standards. The real-time preview feature provides a side-by-side display that live-renders graphics instantly as you type your script, while its zero-setup cloud access means it runs completely in the browser with zero software downloads or local dependencies.
AI-Native Automation
VPasCode leverages artificial intelligence to remove friction from the diagramming process:
-
Natural Language to Diagram: Translates plain English architecture descriptions directly into clean, ready-to-render code scripts.
-
AI Code Error Fixing: Detects broken scripts and offers a “Fix by AI” option to instantly heal syntax flaws.
-
AI Diagram Translation: Localizes diagram variables, labels, and titles into multiple target languages with two clicks while keeping syntax structures intact.
Shareability & Integration
Designed for modern collaborative workflows, VPasCode offers flexible visual exports, allowing users to download layouts instantly as high-resolution PNGs or scalable vector graphics (SVG). Its live link sharing feature generates a unique, persistent web URL for instant collaborative reviews and presentations. Furthermore, because it stores diagram layouts as raw text files, it is Git-native friendly, enabling direct version control inside standard application CI/CD pipelines.
Conclusion
VPasCode represents a significant leap forward in how technical teams visualize complex systems. By unifying PlantUML, Mermaid.js, and Graphviz into a single, AI-enhanced platform, it addresses the critical pain points of traditional diagramming: inconsistency, lack of version control, and slow iteration cycles. For organizations committed to Agile and DevOps practices, VPasCode offers a streamlined, efficient, and collaborative way to maintain living documentation that evolves alongside the codebase. Whether you are debugging a syntax error with AI assistance or translating a diagram for a global stakeholder, VPasCode ensures that your visual communication is as robust and reliable as your code.
References
- Comprehensive Guide to VPasCode by Visual Paradigm: An in-depth overview of VPasCode’s features, capabilities, and use cases for software engineers and architects.
- Introducing VPasCode: The Ultimate Unified Text-to-Diagram Platform: The official release announcement detailing the multi-engine support for PlantUML, Mermaid.js, and Graphviz.
- Clarity by Design: Streamlining Infrastructure Documentation with VPasCode and Graphviz: A guide focused on using Graphviz within VPasCode for clear infrastructure and network topology documentation.
- VPasCode Features: A summary of the core features of VPasCode, including real-time preview, sharing capabilities, and export options.
- Mastering VPasCode: The Ultimate Guide to AI-Powered Diagram-as-Code with Multi-Engine Support: A comprehensive tutorial on leveraging AI features and multi-engine support in VPasCode for efficient diagram creation.
- Break Language Barriers Natively with VPasCode’s New AI Diagram Translation: An article explaining the AI translation feature that allows users to localize diagram labels and text into multiple languages.
- VP Online: The web-based platform where VPasCode is hosted, offering cloud-based diagramming tools.
- Never Get Stuck on Syntax Again: Introducing AI Code Error Fixing in VPasCode: A release note detailing the AI-powered error fixing capability that helps users resolve syntax issues in their diagram code.
